PCI Masking Requirements aka Credit Card Masking

TL;DR:

• PCI DSS masking involves redacting portions of the Primary Account Number (PAN) to prevent unauthorized access to full card details.
• Organizations must adhere to specific requirements for displaying, logging, and transmitting PANs to maintain compliance.
• Non-compliance with PCI masking can result in fines, data breaches, legal consequences, and loss of payment processing capabilities.
• Best practices for PCI masking implementation include automation, role-based access controls, secure storage mechanisms, and regular compliance audits.
• Strac offers a PCI-compliant DLP solution for automated data masking, real-time scanning, access control, and compliance reporting to simplify PCI DSS compliance efforts.

Introduction

The Payment Card Industry Data Security Standard (PCI DSS) establishes strict guidelines for handling cardholder data to prevent fraud and data breaches. One of the key aspects of PCI compliance is masking—the process of obfuscating sensitive cardholder information to minimize exposure and reduce risks. In this blog post, we will cover PCI masking requirements, their significance, and how organizations can ensure compliance efficiently.

What is PCI DSS Masking?

PCI DSS masking involves redacting portions of the Primary Account Number (PAN) aka full credit card number when displayed, ensuring that unauthorized users cannot access full card details. This requirement is critical for preventing unauthorized data exposure in applications, reports, logs, and customer-facing interfaces.

📸✨Key PCI DSS Masking Requirements

1. Display of PAN (Requirement 3.3)

PCI DSS Requirement 3.3 states that organizations must render the PAN unreadable when displayed. The standard explicitly mandates:

• First Six and Last Four Rule: Only the first six and the last four digits of the PAN should be visible when displayed.
• No Full PAN Display: The full PAN must never be shown unless there is a legitimate business need, and only authorized personnel can access it.

2. Masking in Logs and Reports

To prevent unauthorized access, logs, and reports must not store full PANs. They should be masked according to PCI guidelines, showing only allowed digits.

3. Masking in User Interfaces

Any interface displaying cardholder data—such as customer portals, POS systems, and dashboards—must adhere to masking requirements. Only authorized users should have the ability to view full PANs under controlled conditions.

4. Masking for Third-Party Integrations

If an organization shares cardholder data with third-party vendors, masking must be enforced before transmission unless the vendor is PCI-compliant and explicitly requires full PAN access.

5. Tokenization and Encryption

While masking helps in display security, PCI DSS also encourages organizations to use tokenization and encryption to store and transmit PAN securely.

‍

Risks of Non-Compliance

Failure to adhere to PCI DSS masking requirements can result in:

• Hefty fines from card brands (Visa, Mastercard, etc.).
• Data breaches, leading to reputational damage and loss of customer trust.
• Legal consequences, including lawsuits and regulatory actions.
• Loss of ability to process credit card payments.

Best Practices for PCI Masking Implementation

1. Automate PAN Masking Across All Systems

Organizations should use automated Data Loss Prevention (DLP) solutions to enforce PAN masking across applications, logs, and reports.

2. Implement Role-Based Access Controls (RBAC)

Only authorized personnel should have access to full PANs. Implement RBAC to ensure restricted access based on user roles.

3. Use Secure Storage Mechanisms

Masking applies only to displayed data. For stored data, use encryption or tokenization to further protect PANs.

4. Regularly Audit Systems for Compliance

Conduct periodic security audits to identify instances where full PANs might be exposed in logs, reports, or interfaces.

What Is PAN Masking?

‍PAN masking refers to hiding or redacting the primary account number (PAN) so only a portion of the digits are visible. This practice prevents unauthorized access to full cardholder data and is a critical part of PCI DSS compliance. Typically, you can show only the first six and last four digits of the card number, with the rest obscured.

PAN Masking vs. Encryption vs. Tokenization

• Masking hides part of the visible digits, preventing unauthorized access.
• Encryption secures the entire PAN by converting it into an unreadable format requiring a key to decrypt.

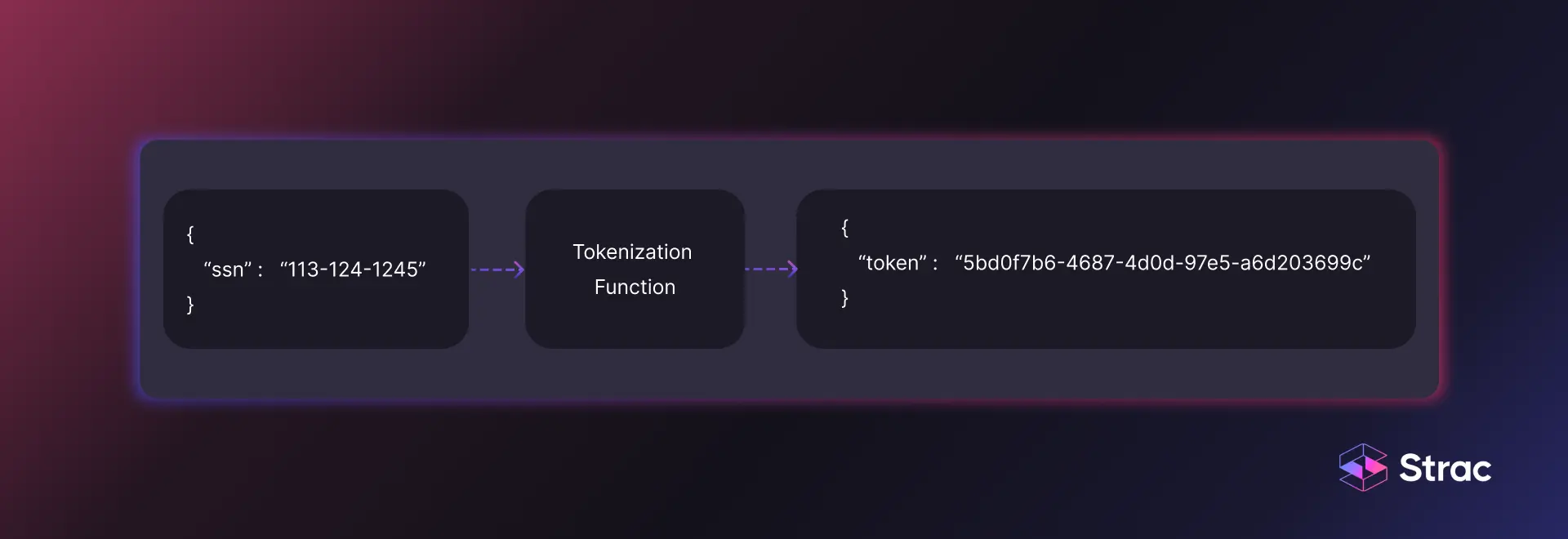

• Tokenization replaces the PAN with a random token, removing the actual PAN from most systems.

How Strac Helps with PCI Masking Compliance

Strac offers a PCI-compliant DLP solution that automates data masking, ensuring organizations comply with PCI DSS effortlessly. Strac’s capabilities include:

• Automated PAN Masking: Enforces PCI masking rules across SaaS applications, databases, and logs.

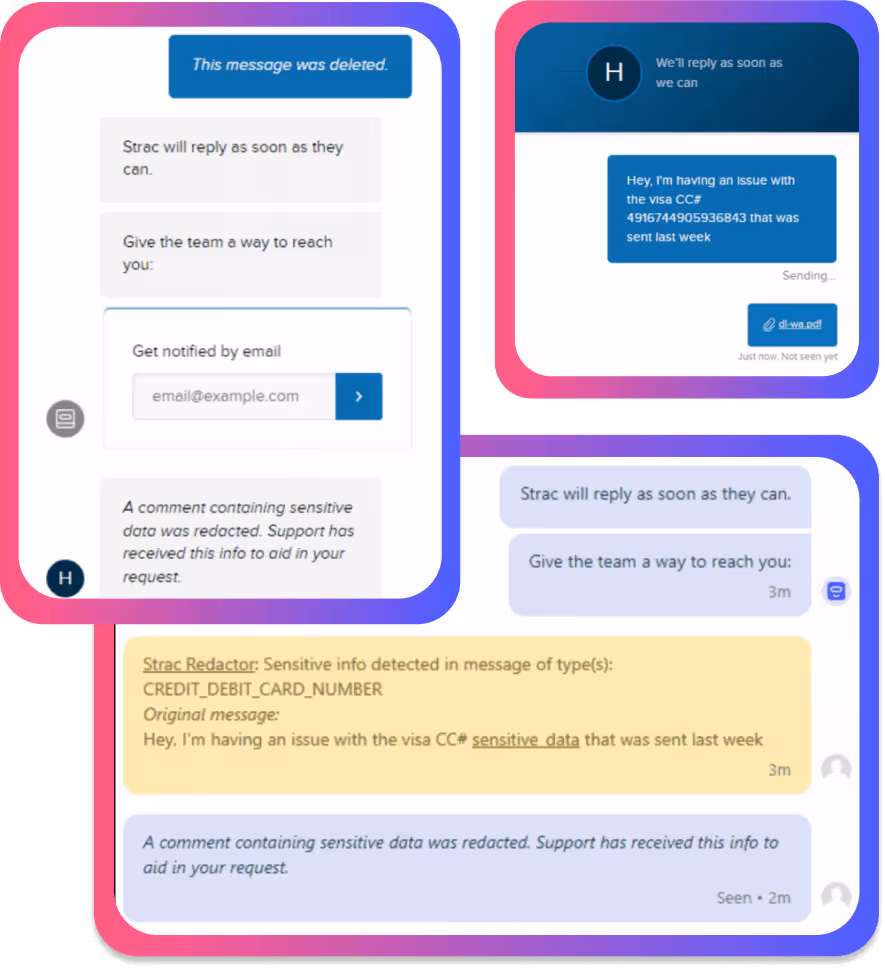

• Real-Time Data Scanning: Detects and masks (aka redacts) unmasked PANs or credit cards in files, emails, and cloud storage.
• Secure Access Control: Implements RBAC, ensuring only authorized users can view full card details.
• Compliance Reporting: Generates reports for PCI audits to demonstrate compliance.

Conclusion

PCI masking is an essential requirement for securing cardholder data and maintaining compliance with PCI DSS. Organizations must ensure they implement robust masking techniques, automate enforcement, and regularly audit their systems to prevent data exposure. Strac simplifies this process by offering automated, scalable, and secure PCI masking solutions, making compliance effortless and reducing security risks.

By adopting best practices and leveraging Strac's DLP solutions, businesses can safeguard cardholder data, maintain regulatory compliance, and build customer trust in an increasingly digital world.

PCI DSS Masking FAQs

1. What is the difference between masking and encryption?

• Masking hides data for display purposes, while encryption converts data into a secure format that requires a key to decrypt.

2 Is PAN masking the same as redacting the credit card number?

Yes, PAN masking (also known as redacting) is the process of hiding all but certain allowed digits (usually first six and last four) to ensure the card number is never fully visible.

3. What Happens if Our Logs Contain Unmasked PANs?

Answer:
Any unsecured storage of full PANs—especially in logs—could lead to immediate compliance violations and potential data breaches. If discovered during an assessment or in the event of a breach, fines and legal action could follow. Immediately remove or mask those PANs and update your processes to prevent recurrence.

4. Do We Need to Mask PANs on Internal Systems That Aren’t Customer-Facing?

Answer:
Yes. PCI DSS doesn’t differentiate between internal and external systems for masking—if the PAN is displayed, it needs to be masked, no matter where. The only exception is if there’s a proven legitimate business need to see the full PAN, with robust access controls limiting who can view it.

5. If We Use Encryption, Do We Still Need to Mask?

Answer:
Encryption protects data at rest or in transit, but masking controls how much of the PAN is visible to users and systems. Even if your PANs are encrypted in the database, once they’re displayed in an application, logs, or reports, you must ensure masking rules (first six and last four) are still applied.

6. Can We Mask the PAN in One System but Show It Elsewhere?

Answer:
You need consistent masking across the entire data flow—any interface, log, or application displaying the PAN should comply with the same masking standard. Having unmasked data in just one system can create a weak link in your security chain (and your PCI DSS compliance).

7. How Do We Handle Potentially Old Data Containing Full PANs?

Answer:
Legacy databases and archives may contain unmasked PANs. PCI DSS requires that you either redact, encrypt, or securely delete this data. Performing a data discovery audit and remediation is crucial. Solutions like Strac can automatically scan these repositories and apply masking or remediation actions.

8. Is Storing the CVV or Magnetic Stripe Data Ever Allowed?

Answer:
No. Under PCI DSS, storing the CVV (or CVV2/CVC2) and full track data from the magnetic stripe is strictly prohibited, regardless of whether it’s encrypted or masked. This sensitive data should only be used for authorization and cannot be retained post-authorization.

9. Do I Still Need PCI DSS Compliance if I Only Process a Handful of Transactions?

Answer:
Yes. Any organization, regardless of transaction volume, that accepts or processes card payments is subject to PCI DSS. Even a single breach involving one customer’s card can cause reputational damage, legal issues, and fines.

10. What Are the Typical Penalties for Non-Compliance or a Breach?

Answer:
Penalties can include:

• Fines from card brands (Visa, Mastercard, etc.) ranging from thousands to millions of dollars.
• Increased scrutiny and regular audits by acquiring banks.
• Possible revocation of the right to process card payments.
• Legal actions, lawsuits, and severe reputational damage.

11. Can Tokenization Replace Masking Entirely?

Answer:
Tokenization can significantly reduce the amount of PAN data you store, but it doesn’t negate the need for masking any PAN that is ever displayed. When the actual PAN is displayed or revealed, PCI DSS masking rules still apply.

12. We Use a Third-Party Payment Gateway—Is Masking Still Our Responsibility?

Answer:
Yes. Even if you outsource payment processing, you must ensure that any place you capture or display card data (e.g., internal systems, logs, or user interfaces) follows PCI DSS rules. Outsourcing doesn’t transfer compliance obligations entirely away from your organization.

13. Does PCI DSS masking apply to printed reports?

Yes, printed reports containing PANs must also follow PCI DSS masking rules (showing only the first six and last four digits).

14. How does Strac ensure PCI DSS compliance?

Strac provides an end-to-end solution for PCI DSS compliance by combining automated data discovery, masking, and secure access controls. Below is a detailed breakdown:

1. Automated Data Discovery & Masking
   • Real-Time Scans: Strac continuously scans emails, SaaS apps, databases, and other data sources for unmasked card data (PANs).
   • PCI-Compliant Masking: Once PANs are detected, Strac automatically masks the data to show only the first six and last four digits, thus preventing unauthorized access to the full card number.
2. Encryption & Tokenization
   • Protection at Rest & in Transit: Strac encrypts or tokenizes card data, ensuring that, even if stored or intercepted, the PAN remains unreadable without the appropriate keys.
   • Compliance Across Systems: Any data that moves between systems remains encrypted, meeting PCI DSS requirements for secure transmission and storage.
3. Centralized Monitoring & Reporting
   • Unified Dashboard: Strac offers a single pane of glass to oversee all masked data, user accesses, and any potential compliance gaps.
   • Audit-Ready Reports: Built-in reporting features map directly to PCI DSS controls. This streamlines audit preparation, giving you clear proof of compliance.

In summary, Strac significantly reduces the risk of non-compliance or data breaches by automating the masking process, securing access with RBAC, encrypting sensitive data, and simplifying audits with real-time compliance reporting.

‍
